Checklist / System Requirement for MarketView Application

Hardware Requirements

1. Standard PC architecture, Core 2 duo processor or above.
2. The minimum memory (RAM) should be at least 4 GB. Recommended 8 GB.
3. The min available hard drive space should be 4 GB. Recommended 8 GB.(For better performance SSD HD recommended)
4. Optical wheel Mouse.
5. VGA or SVGA video adapter with minimum 2MB or greater, 256 colors, 1024x768 resolution

• A network interface card (NIC) and the appropriate network transport software for a network connection to TickerPlant Servers. The supported connection method and network transport is HTTP/S .

For optimum performance for one concurrent user minimum 124 Kbps per access is recommended with a User Id and password.

Software Requirements

1. Java Runtime Environment (JRE) 32-bit version 6 update 15 or above for Windows Operating System.
2. For Win 7 / 8 /8.1/10 Microsoft .NET Framework 3.5 should be installed/Activated.

To activate .NET Control Panel\All Control Panel Items\Programs and Features-->click on Windows features On or Off

3. Microsoft Excel should be above 2013 standard version or above for smooth functioning for export to excel.

4. Internet Explorer version should be 8.0 or above.

Installation Procedure

1. Run MVT Setup.exe to install latest Market View application.
2. Copy MarketViewTerminal Masters folder and paste to the physical path. (C:\Program Files\TickerPlant\MarketViewTerminal)

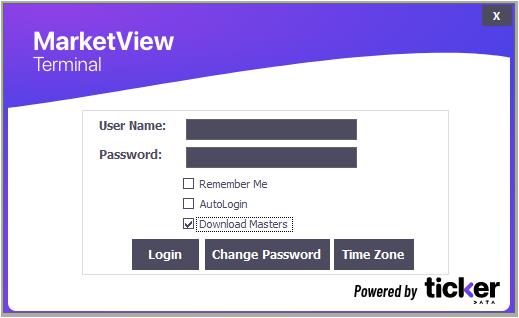

3. If you are connected on direct internet, then login the application

4. If you are connected through proxy then Click on Tools-->Configuration-->Proxy Tab-->Select Proxy Server Field & Put Proxy IP address and internal connecting Port No. of your proxy server.

5. Kindly specify authentication details of user if any and click on OK then login the application.

Note: -

1. Connectivity checks are explained further, kindly refer them.
2. Also before login, kindly check the System Settings for compatibility.

System Settings for compatibility

1. Operating System  :- For Windows 10 or above.

• Click on Change User Account Control Settings in Control Panel User Accounts.
• Drag the notification bar to never notify and restart the system for the effect.
• Select “English (United States)” in Region and Language
• Allow full access to Tickerplant & Java folder in Folder security.

2. Browser

• Turn off Pop-up Blocker.
• Enable Java related Add-ons in manage add-ons.
• Turn off Smart screen filter through advance -->security settings

3. Java Settings

• Kindly keep only one recommended version of JRE
• For JRE 8 or higher version keep security setting low and add file:/// And https://contents.tickermarket.com  and https://contents2.tickermarket.com in Exception Site List

4. Antivirus Settings

Provide exclusion to the below mentioned folders in antivirus.

• C:\Program Files\TickerPlant
• C:\Program Files\Java
• C:\Program Files\Microsoft.NET

Also provide exclusion to below mention files in antivirus.

• C:\Program Files\TickerPlant\MarketViewTerminal\TickerPlant_Terminal.exe
• C:\Program Files\TickerPlant\MarketViewTerminal\Updater.exe
• C:\Program Files\TickerPlant\MarketViewTerminal\EXCEL.EXE

5. Connectivity

• Direct Connection.
  • user can directly login to Application.

• Proxy /Firewall Configuration

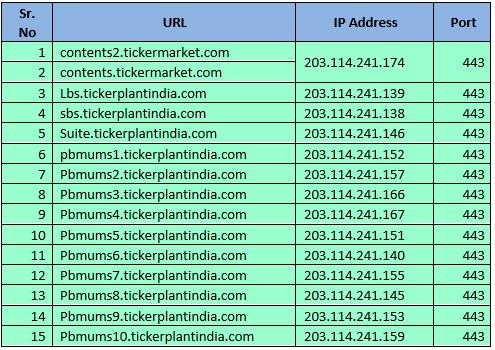

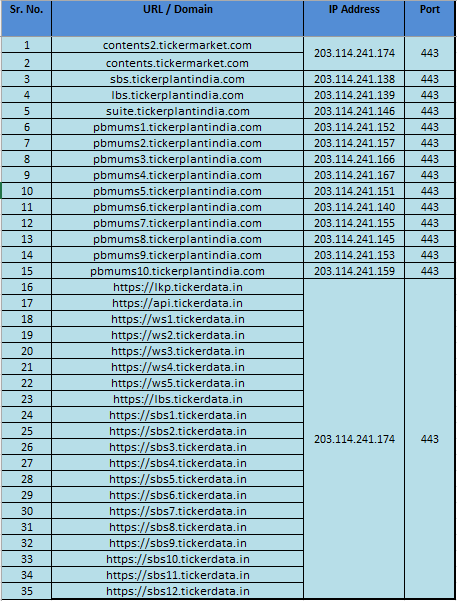

       For Proxy/Firewall, access is needed to be given to the mentioned URLS and Ports and also follow below mention specifications.

1. Proxy should allow connections to Ticker Plant Servers (Web & Real time)
2. Proxy should allow communication on port 80 for HTTP and port 443 for SSL Tunneling
3. Proxy User Authentication should be disabled for connections to Ticker Plant Servers (Web & Real time).
4. Proxy-Caching should be disabled for connections to Ticker Plant Servers (Web & Real time).
5. Do not provide Keep-Alive Time-out Interval for connections to Ticker Plant Servers (Web & Real time). It should be Infinite
6. Disable any Packet/Data Filtering rules on Proxy/Firewall for connections to Ticker Plant Servers (Web & Real time).
7. Proxy should not modify the HTTP Header in Request/Response.
8. The connections to be allowed on Proxy/Firewall should be based on URL for Ticker Plant Servers (Web & Real time). It should not be based on IP-address.
9. In case the Proxy is bypassed; the firewall should allow connections to Ticker Plant Servers (Web & Real time).

Note: For any assistance on proxy servers please contact your Local Network

 In case of any assistance please do call us at  91-22-66866060 or  email us at support@tickermarket.com  mentioning your contact details.
